Fabrication Flat Pattern

Discover the power of efficient fabrication with our advanced app, designed to streamline the creation of flat patterns for a variety of shapes commonly used in the industry. From pipe branches to eccentric cones and toricones, our app simplifies the development of fabrication layouts, significantly reducing fabrication time while enhancing accuracy.

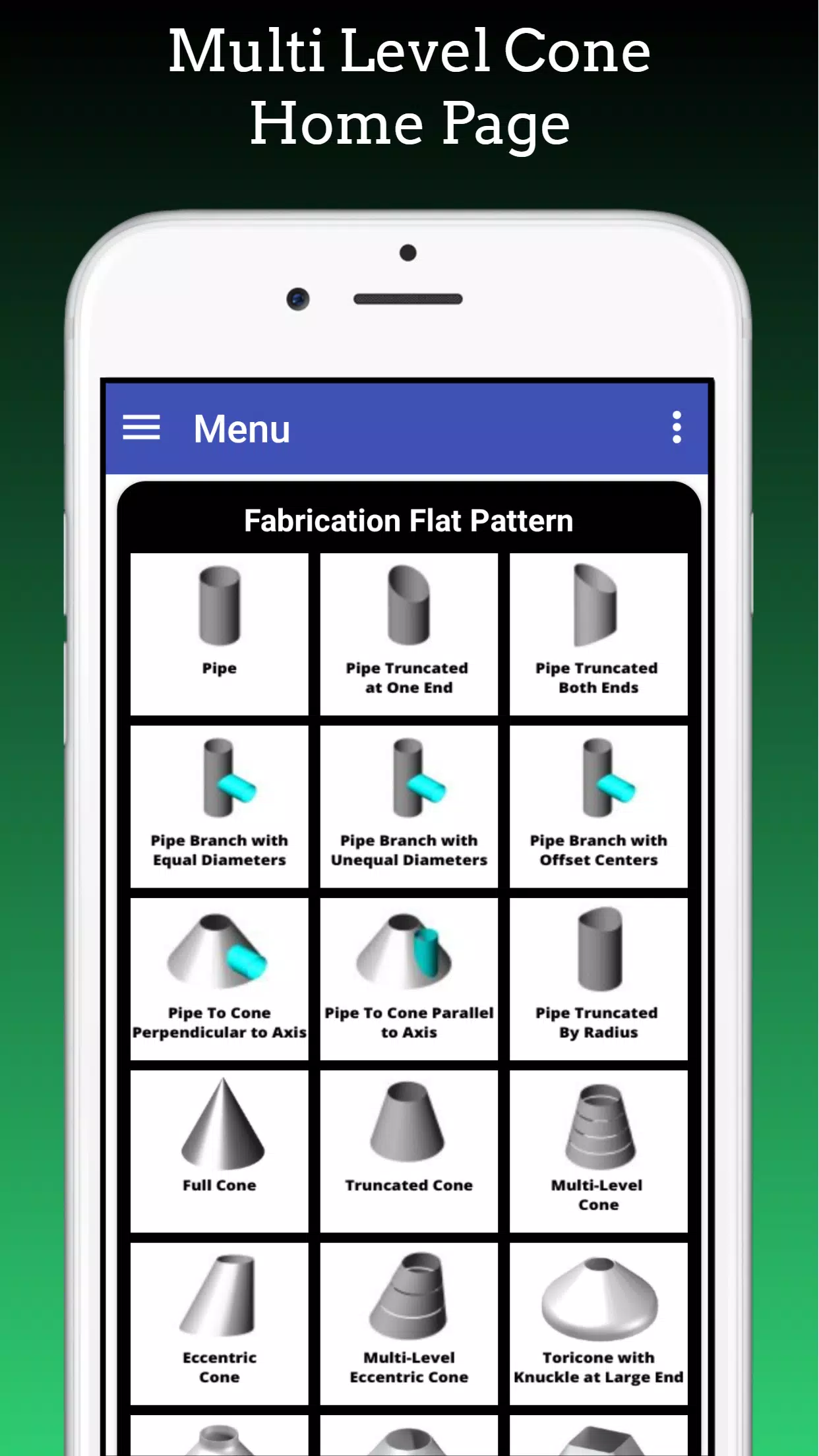

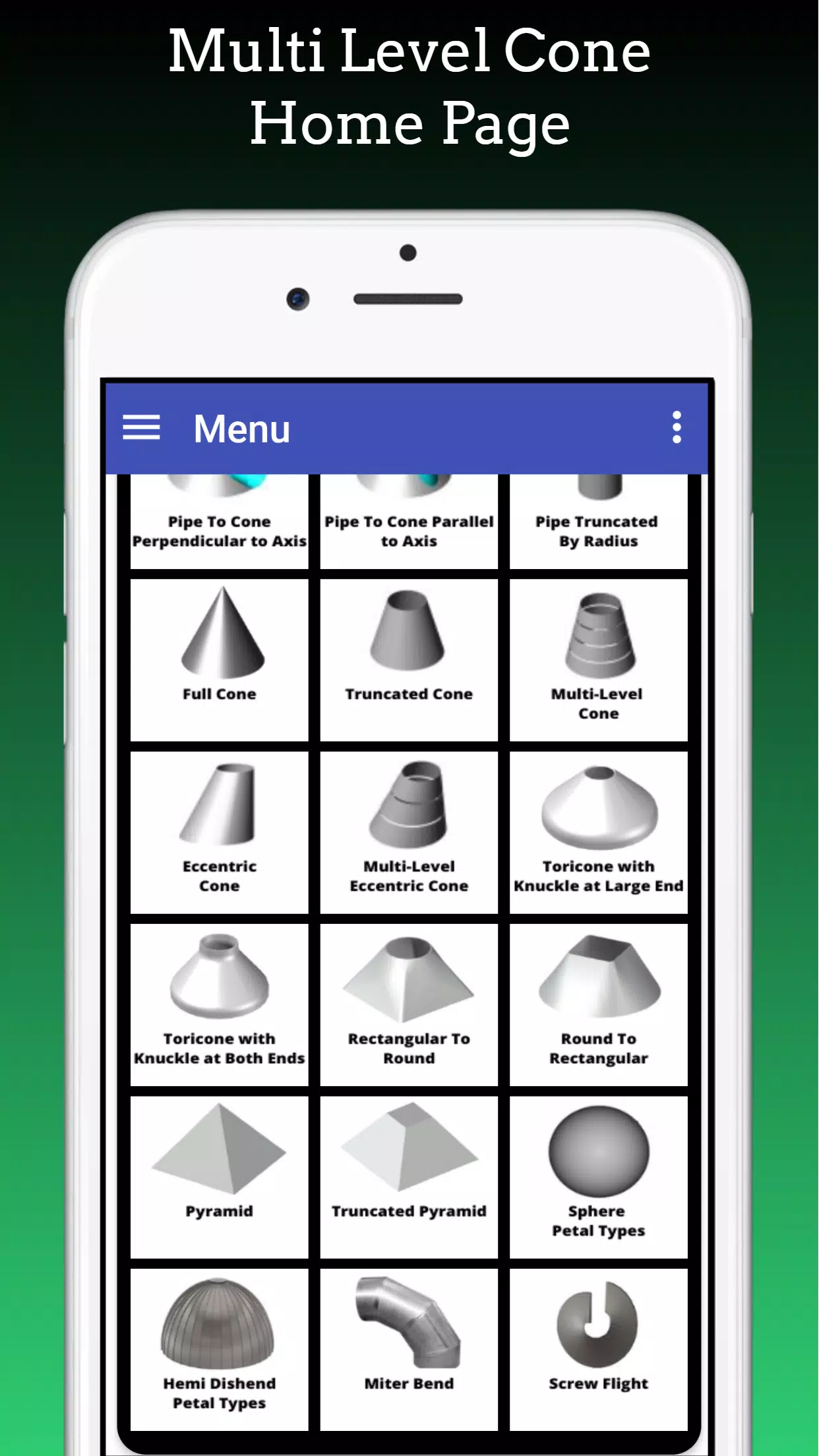

Our app offers an extensive range of fabrication flat pattern options, including:

• Pipe Layout or Shell Layout or Pipe Flat Pattern
• Truncated Pipe Layout or Pipe cut at any angle Flat Pattern
• Truncated Pipe at Both End Layout or Pipe cut by an angle on both sides Flat Pattern
• Pipe to Pipe Intersection with equal Diameters or Pipe Branch Connection Flat Pattern
• Pipe to Pipe Intersection with unequal diameters or Pipe Branch Connection Flat Pattern
• Pipe to Pipe Intersection with offset diameters or Pipe Branch Connection Flat Pattern
• Pipe to Cone Intersection at Perpendicular to Axis Flat Pattern
• Pipe to Cone Intersection at Parallel to Axis Flat Pattern
• Pipe Truncated by Radius Flat Pattern
• Full Cone Layout Flat Pattern
• Truncated or Half Cone Layout Flat Pattern

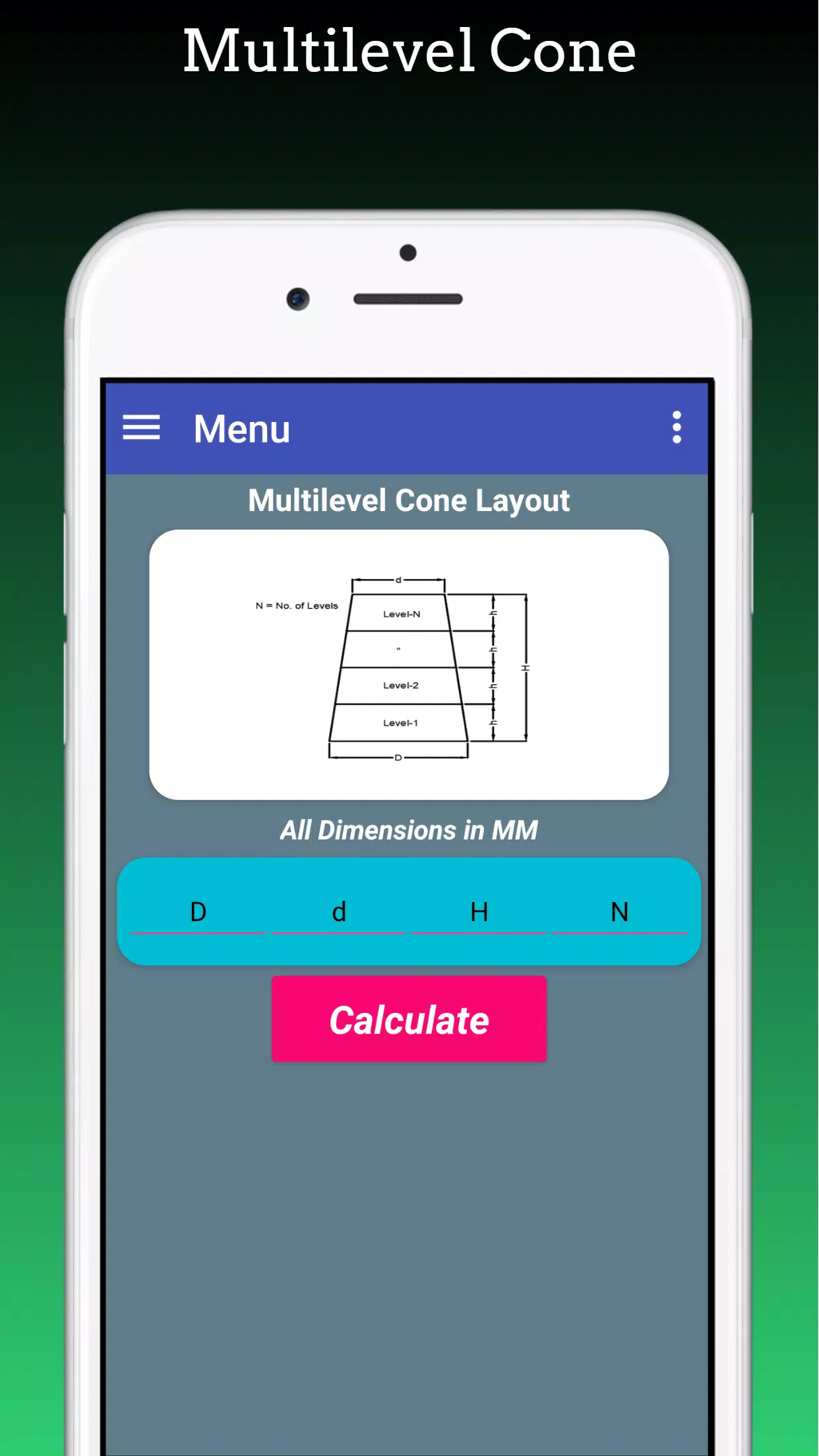

• Multi Level Cone Layout Flat Pattern
• Eccentric Cone Layout Flat Pattern
• Multilevel Eccentric Cone Layouts Flat Pattern
• Tori Cone with Knuckle Radius at Large End Flat Pattern
• Tori Cone with Knuckle Radius at Both Ends Flat Pattern
• Rectangle to Round or Square to Round Transition Layout Flat Pattern
• Round to Rectangle or Round to Square Transition Layout Flat Pattern
• Pyramid Layout Flat Pattern
• Truncated Pyramid Layout Flat Pattern
• Sphere Petal Layouts Flat Pattern
• Dish End Petal Layouts Flat Pattern
• Miter Bend Layout Flat Pattern
• Screw Flight Layout Flat Pattern

This application is perfect for working with cones, shells, pipes, pipe branch connections, full cones, half cones, truncated cones, square to round transitions, round to square transitions, rectangular to round transitions, round to rectangular transitions, pyramids, truncated pyramids, cone to pipe branches, spheres, and dish ends. It's an invaluable tool for professionals engaged in pressure vessel fabrication, process equipment fabrication, welding, piping, insulation, ducting, heavy equipment fabrication, storage tank construction, agitator manufacturing, mechanical equipment assembly, structural engineering, industrial fabrication, and heat exchanger production.

Ideal for production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, supervisors, fitters, and workers, our app is the ultimate solution for optimizing your fabrication processes.
