MHD F+G Series

The MHD Flasher F+G Series is a comprehensive flash tuning application designed for BMW and Toyota Supra A90 vehicles. Unlike piggyback modules, it offers complete DME remapping while preserving all original equipment manufacturer (OEM) safety features. This ensures optimal performance, safety, and drivability.

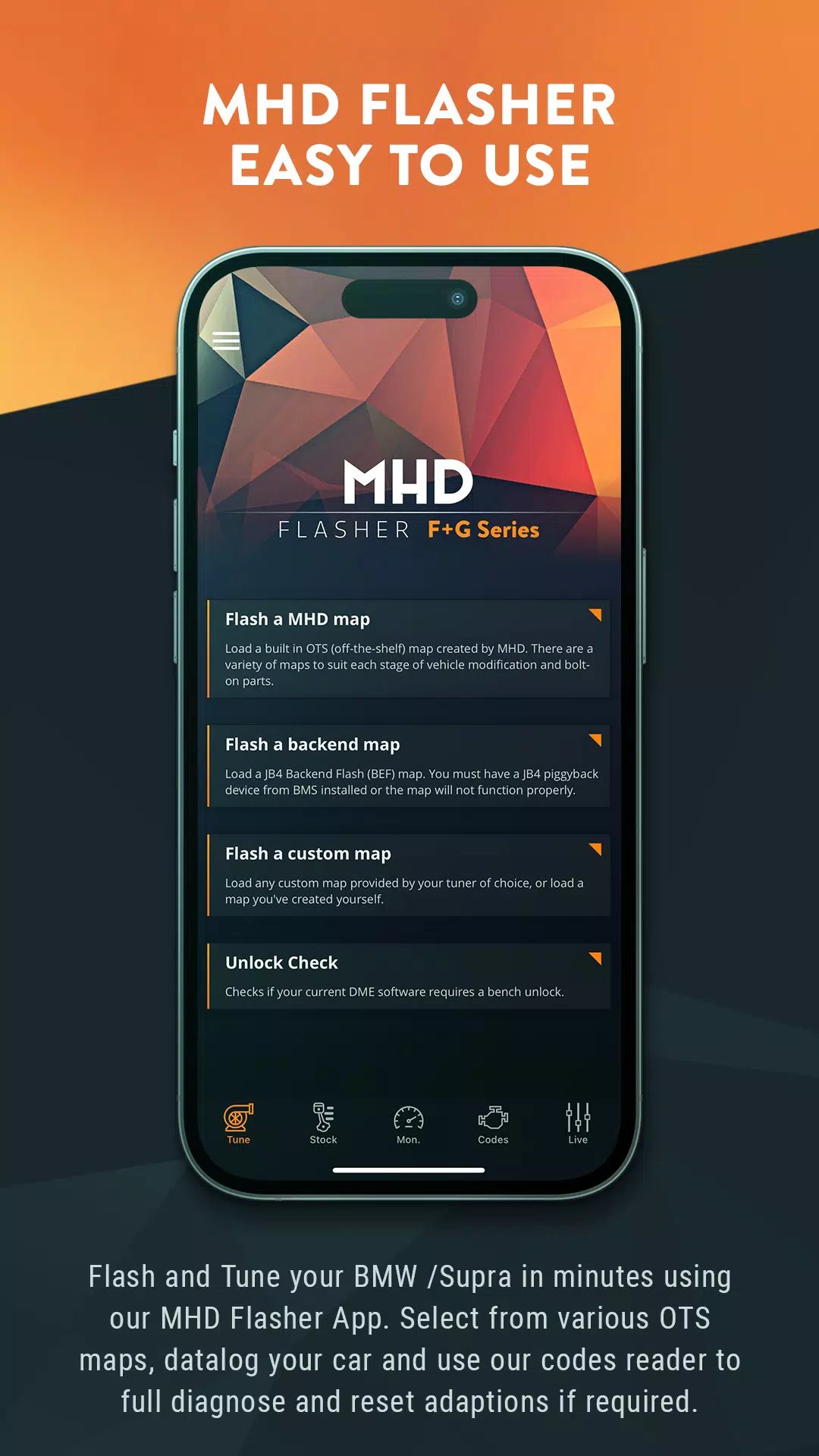

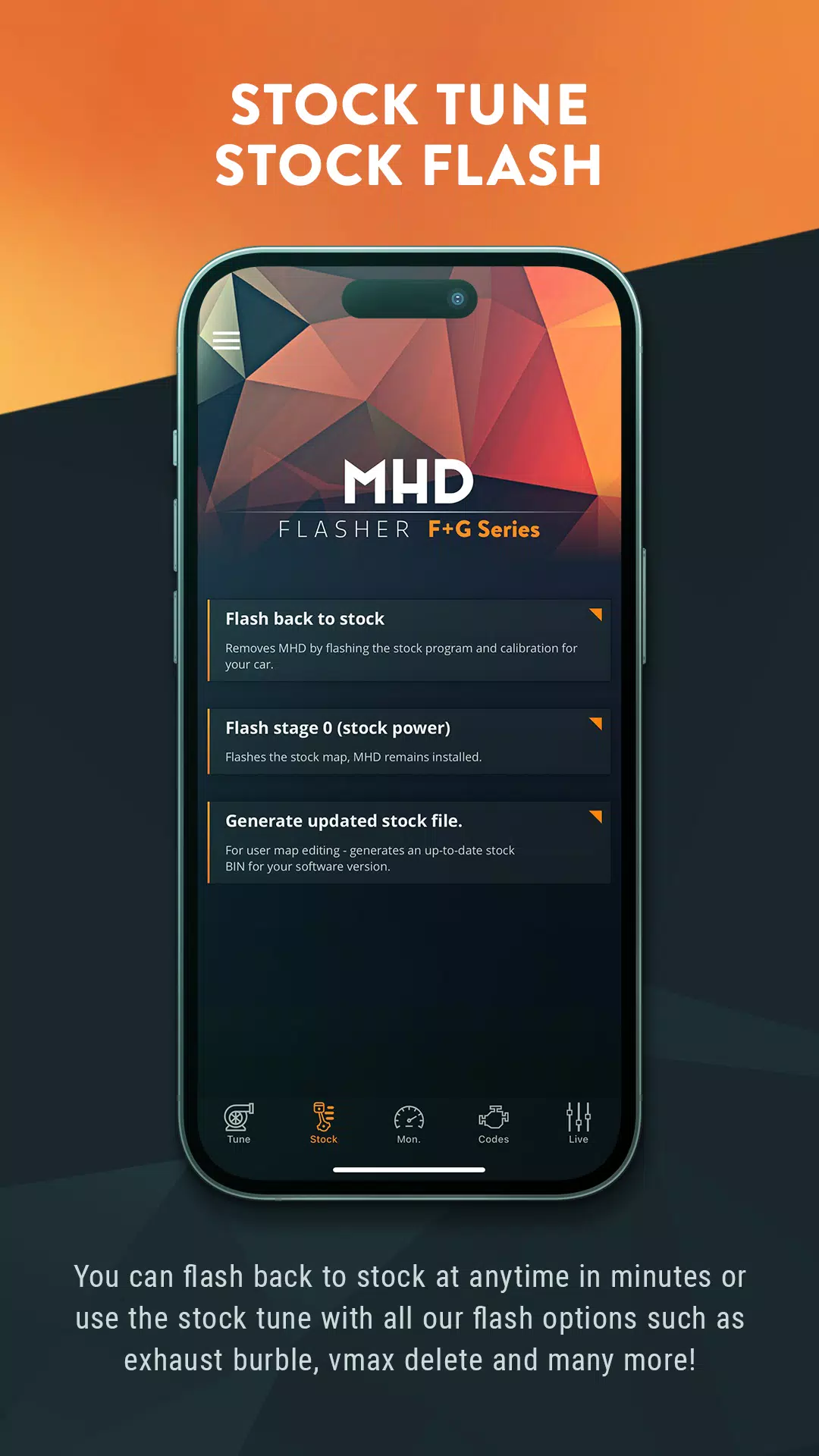

Full OBD Flashing: Conveniently install MHD at home and begin tuning immediately. Simply download the MHD Flasher F+G Series app, connect via a MHD WiFi adapter and your vehicle's OBD-II port, launch the app, and complete the initial installation in under five minutes. Subsequent map changes are even faster—a mere 20 seconds! You can revert to the factory OEM flash at any time; no initial backup is required.

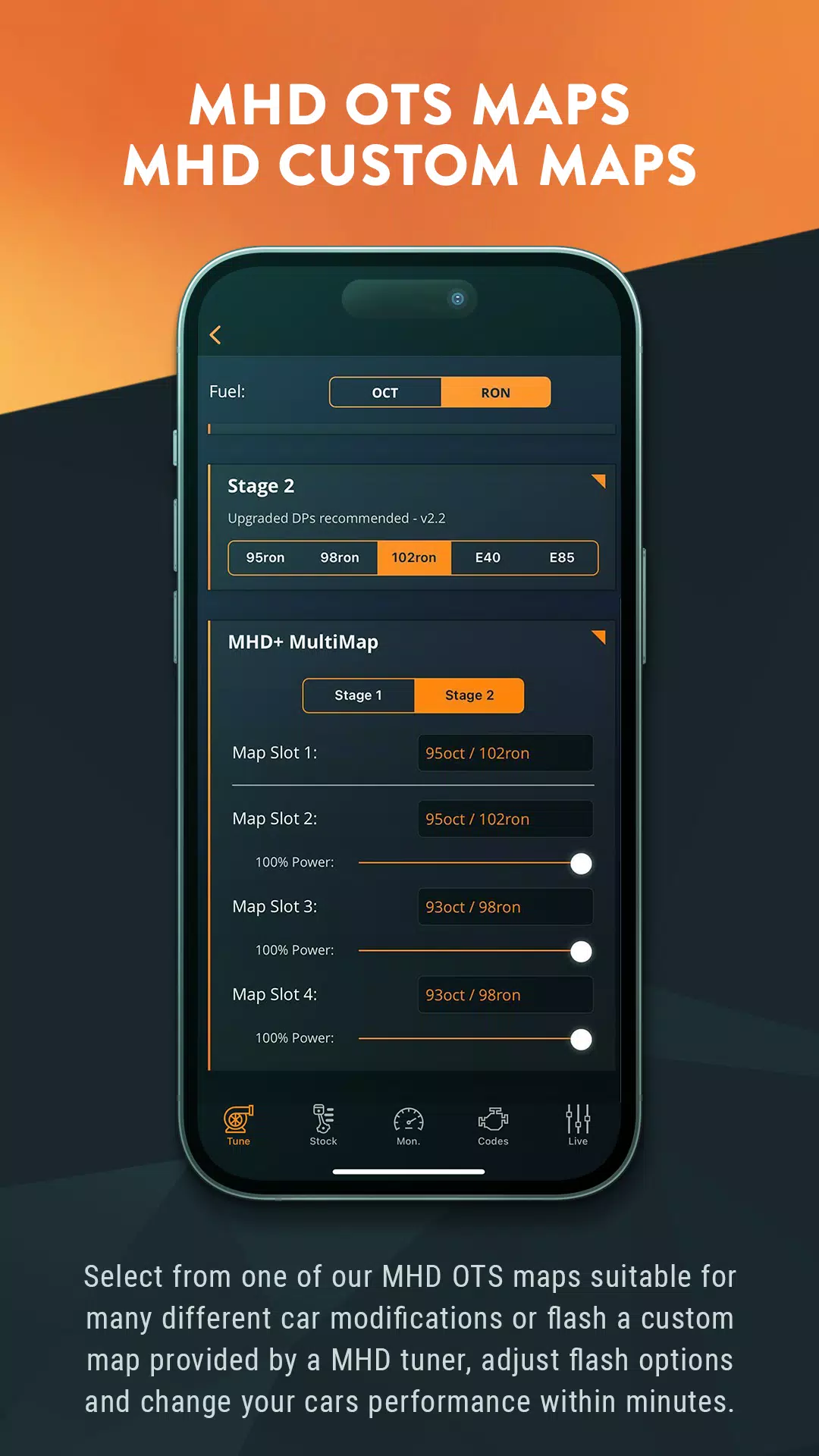

Stage 1, Stage 2, and E85 OTS (Off-The-Shelf) Maps by PureBoost:

N55 EWG (Electronic Wastegate - Vehicles built after 07/2013):

• Stage 1 (up to 360HP/540NM) (not available for M2 and X4 M40i)
• Stage 2 (up to 390HP/580NM)
• Stage 2+ (up to 430HP/630NM)
• Ethanol Mix Maps: Stage 1, 2, and 2+ E20 Maps for 20% ethanol blends

N55 PWG (Pneumatic Wastegate):

• Stage 1 (up to 340HP/540NM)
• Stage 2 (up to 370HP/580NM)
• Stage 2+ (up to 400HP/630NM)
• Ethanol Mix Maps: Stage 1, 2, and 2+ E20 Maps for 20% ethanol blends

S55 (BMW M3/M4 F8x):

• Stage 1 (up to 530HP/700NM)
• Stage 2 (up to 560HP/780NM)
• Ethanol Mix Maps: Stage 1, 2, and 2+ E30 Maps for 30% ethanol blends

B58:

• Stage 1 (up to 440HP/600NM)
• Stage 2 (up to 470HP/650NM)
• Stage 2+HPFP (up to 500HP/700NM)
• Ethanol Mix Maps: Stage 1, 2 Maps for 30% ethanol blends

S58:

• Stage 1 (up to 630HP/750NM)
• Stage 2 (up to 700HP/850NM)
• Ethanol Mix Maps (up to 750HP/880NM): Stage 1 & 2 E30+ Maps for 30%+ ethanol blends

S63:

• Stage 1 (up to 720HP/900NM)
• Stage 2 (up to 780HP/950NM)
• Ethanol Mix Maps (up to 800HP/1000NM): Stage 1 and 2 Maps for 30%+ ethanol blends

N13:

• Stage 1 (up to 200HP/280NM, 93oct/98RON)
• Stage 2 (up to 235HP/350NM, 93oct/98RON)

MHD+ Custom Code: Features live tuning, on-the-fly map switching, on-the-fly exhaust flap control, anti-lag, flex fuel, single bank, KnockCEL, no-lift shift, shift brap, and full Motiv ReFlex 2-way CANBUS integration with DME PI control.

Full Data Logging and Live Gauges: Monitor engine performance with a customizable gauge layout displaying over 50 engine parameters.

App-Applied Flash Options:

• Anti-Lag (N55/S55/N13 only currently)
• Exhaust Burble (adjustable duration, aggressiveness, speed, and RPM)
• Top Speed Limiter Removal (Vmax)
• Cold Start Noise Reduction
• Exhaust Flap Open in Sport Mode
• Power Limit per Gear
• XHP TCU flash support (optimized OTS maps)
• Sport Cooling Mode
• And many more

Consult our homepage/user manual for detailed information, supported vehicles, and recommended modifications for each stage.

What's New in Version 4.78 (Last Updated Oct 23, 2024)

• Added flash option support for the Gen2 Dorch DS25 HPFP.
• Fixed hot start issue on Gen2 B58 ethanol OTS maps.
